The GermanMAESTRO's high-quality speakers in the MARINA line are designed to meet the high-stress requirements found on the open waters.

    16 cm / 6,5" 2-Way Coaxial System

    Technical Data



    Diameter T/W:

    0.75" (19 mm) / 6.5" (16 cm)

    Power Handling:

    60 - 130 W

    Frequency Response:

    38 Hz - 32.000 Hz

    Impedance:

    4 Ohm

    Crossover Frequency:

    4.000 Hz

    Sensitivity:

    89 dB (2,83V/1m)



    Installation Instructions



    Speaker basket and grille made of UV-resistant fiber-reinforced ABS plastic

    Insert injection-molded magnet systems for optimized protection against humidity and mechanical influences

    MARINA woofer with polypropylene cone

    0.75" tweeter with titanium dome

    MARINA crossover with special protective sealing lacquer and gold-plated terminals to resist corrosion

    Voice-coils protected against direct water spray

    Sealed solder joints

    Stainless steel V4A mounting screws included

    Separate mounting gaskets

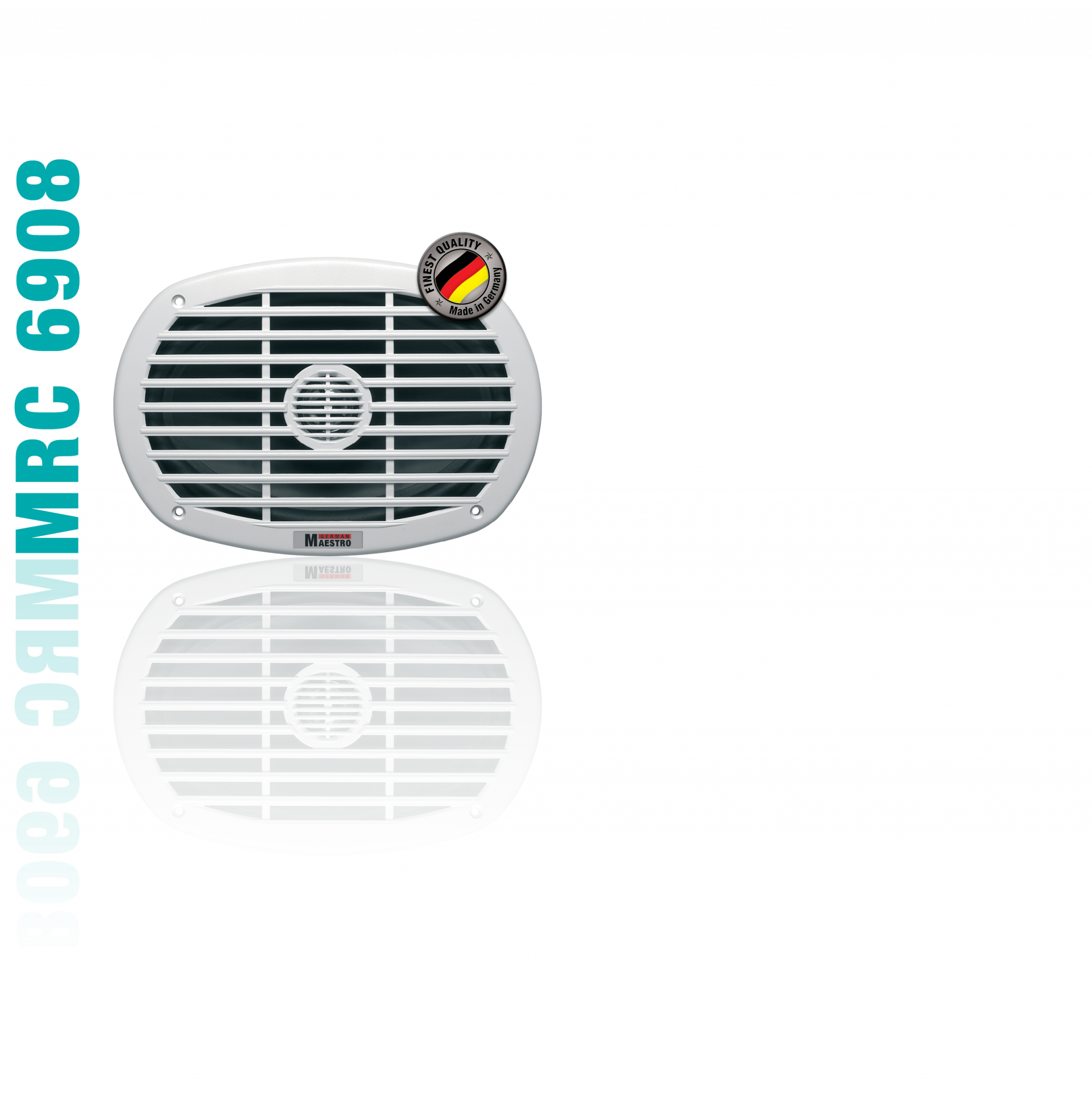

    6 x 9" 2-Way Coaxial System

    Technical Data



    Diameter T/W:

    1" (25 mm) / 6 x 9 "

    Power Handling:

    60 - 140 W

    Frequency Response:

    35 Hz - 32.000 Hz

    Impedance:

    4 Ohm

    Crossover Frequency:

    3.800 Hz

    Sensitivity:

    89 dB (2,83V/1m)



    Installation Instructions



    Speaker baskets and grilles made of UV-resistant fiber-reinforced ABS plastic

    insert injection-molded magnet systems for optimized protection against humidity and mechanical influences

    MARINA-R woofer with polypropylene cone

    1" tweeter with titanium dome

    MARINA-R crossovers with special protective sealing lacquer and gold-plated terminals to resist corrosion

    Voice-coils protected against direct water spray

    Sealed solder joints

    Stainless steel V4A mounting screws included

    Separate mounting gaskets

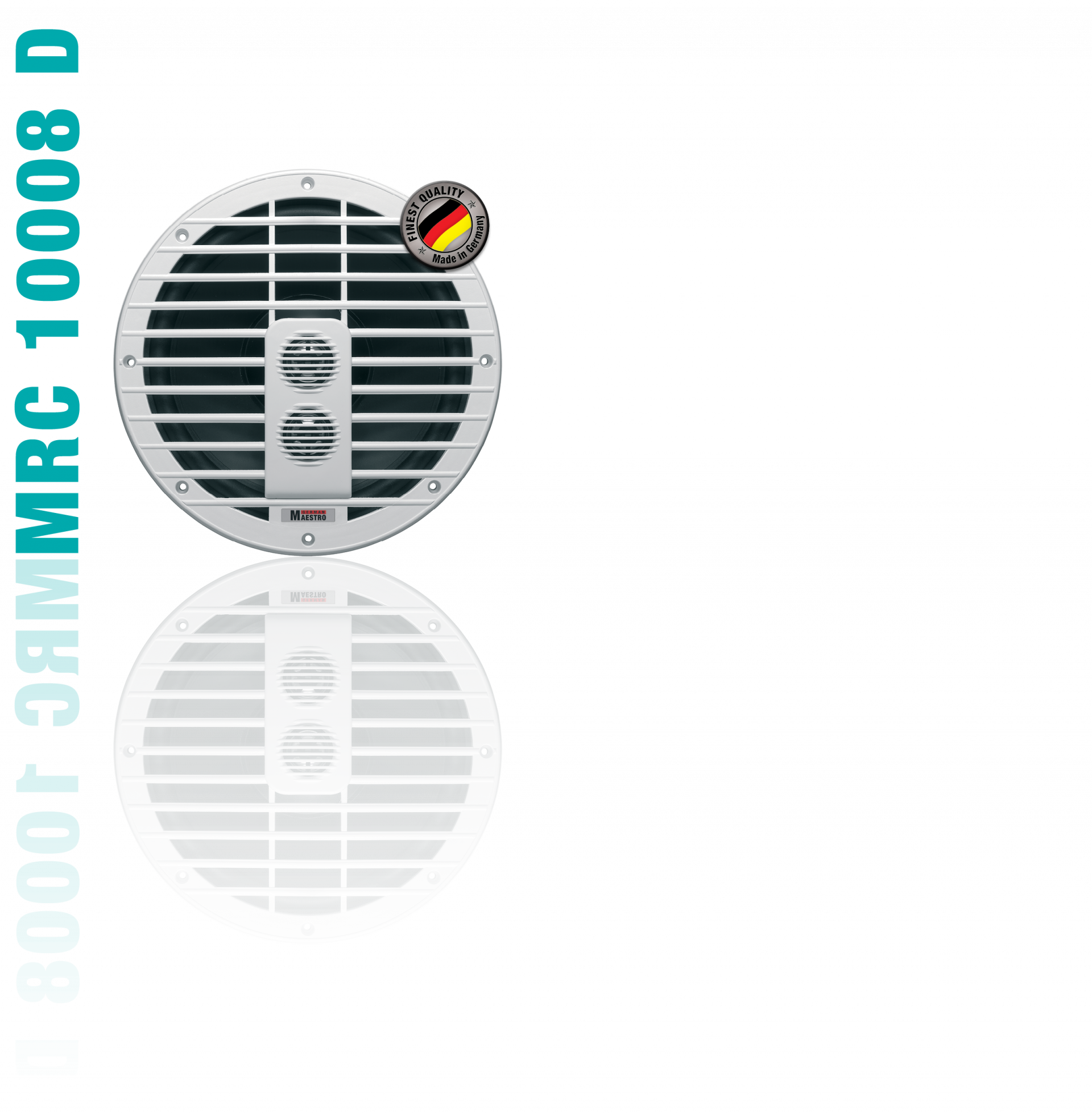

    25cm / 10" 2-Way Coaxial System

    Technical Data



    Diameter T/W:

    2 x 1" (25 mm) / 10" (25 cm)

    Power Handling:

    150 W

    Frequency Response:

    25 Hz - 32.000 Hz

    Impedance:

    4 Ohm

    Crossover Frequency:

    3.000 Hz

    Sensitivity:

    89 dB (2,83V/1m)



    Installation Instructions





    Speaker baskets and grilles made of UV-resistant fiber-reinforced ABS plastic

    MARINA-R woofer with polypropylene cone

    1" tweeters with titanium dome

    MARINA-R crossovers with special protective sealing lacquer and gold-plated terminals to resist corrosion

    Voice-coils protected against direct water spray

    Sealed solder joints

    Stainless steel V4A mounting screws included

    Separate mounting gaskets

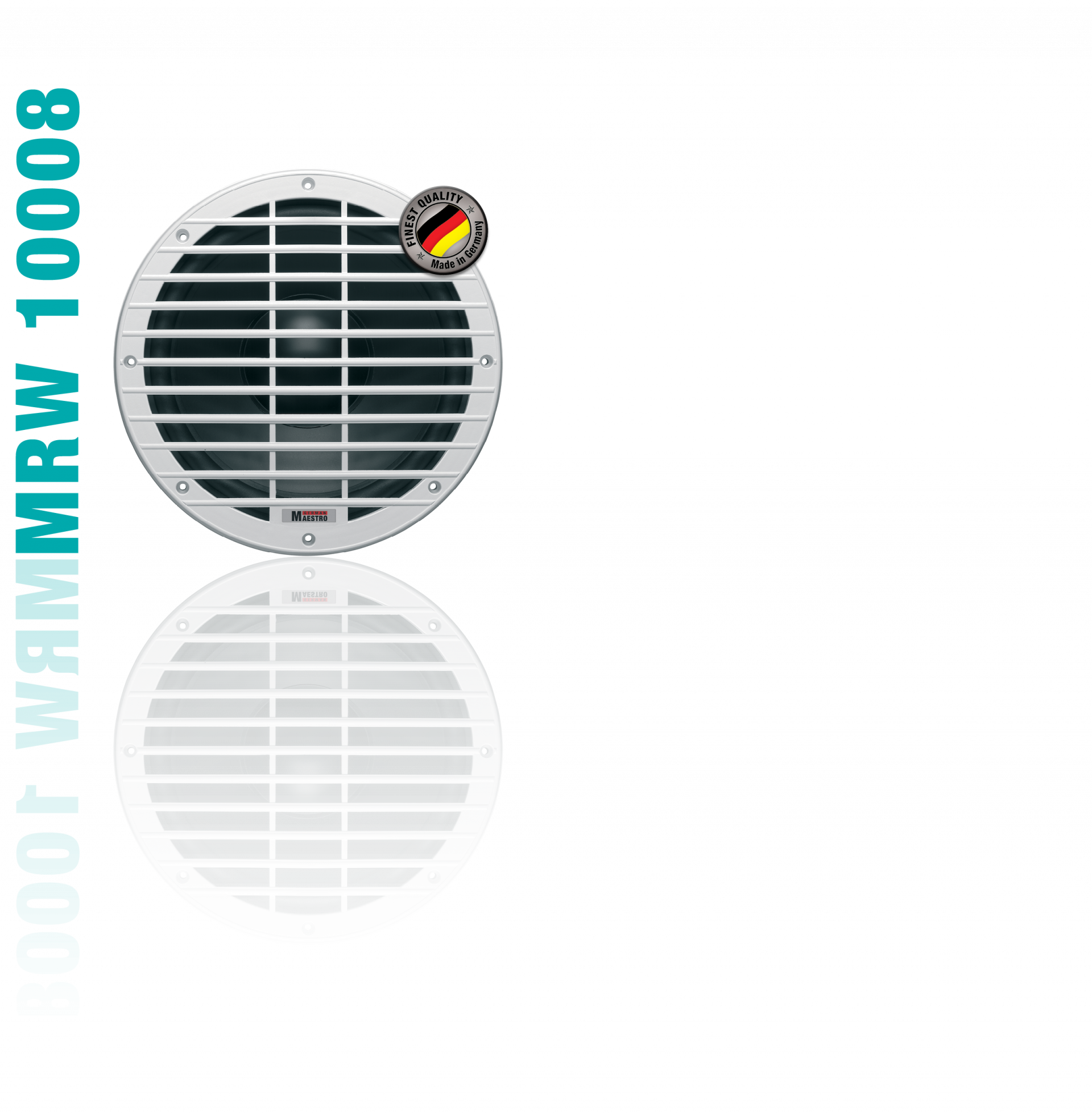

    25 cm / 10" Subwoofer

    Technical Data



    Diameter T/W:

    10" (25 cm)

    Power Handling:

    150 W

    Frequency Response:

    29 Hz - 300 Hz

    Impedance:

    4 Ohm

    Sensitivity:

    90 dB (2,83V/1m)



    Installation Instructions



    Speaker baskets and grilles made of UV-resistant fiber-reinforced ABS plastic

    MARINA-R subwoofer with polypropylene cone

    Voice-coils protected against direct water spray

    Sealed solder joints

    Stainless steel V4A mounting screws included

    Separate mounting gaskets
