Products, made for „Makers“



The GermanMAESTRO EPIC-line convinces by the extreme wide range of possible applications. No matter if 4”, 5”, 6.5”, 6x8 or 6x9 System, the EPIC-line provides the comfort to conveniently switch the installation-scenario from a component installation with the tweeter placed at a random position to a coaxial installation with woofer and tweeter on same axis.

  • 2-Way-Compo./Coaxial-System

      Technical Data



      Diameter T/W

      20 mm (0.8“) / 16 cm (6.5“)

      Principle:

      2-Way-Compo./Coaxial-System

        Power Handling:

        60 W RMS / 195 W Max.

          Freq. Response:

          30 – 30.000 Hz

            Impedance:

              Crossover Frequency:

              4.000 Hz (6/12 dB/Okt.)

                Sensitivity:

                88 dB (2,83V/1m)



                  Installation Manual

                  DSP-Settings

                  more 6,5" models

                • 2-Way-Compo./Coaxial-System

                    Technical Data



                    Diameter T/W:

                    20 mm (0.8“) / 13 cm (5.25“)

                    Principle:

                    2-Way-Compo./Coaxial-System

                      Power Handling:

                      50 W RMS / 165 W Max.

                        Freq. Response:

                        52 – 30.000 Hz

                          Impedance:

                            Crossover Frequency:

                            4.000 Hz (6/12 dB/Okt.)

                              Sensitivity:

                              86 dB (2,83V/1m)



                                Installing Manual

                                more 5,25" models

                              • 2-Way-Compo./Coaxial-System

                                  Technical Data



                                  Diameter T/W:

                                  20 mm (0.8“) / 10 cm (4“)

                                    Principle:

                                    2-Way-Component-System

                                      Power Handling:

                                      40 W RMS / 130 W Max.

                                        Freq. Response:

                                        60 – 30.000 Hz

                                          Impedance:

                                            Crossover Frequency:

                                            3.700 Hz (6/12 dB/Okt.)

                                              Sensitivity:

                                              84 dB (2,83V/1m)



                                                Installation Manual

                                                more 4" models

                                                • 2-Way-Compo./Coaxial-System

                                                    Technical Data



                                                    Diameter T/W:

                                                    20 mm (0.8“) / 6 x 9"

                                                    Principle:

                                                    2-Way-Compo./Coaxial-System

                                                      Power Handling:

                                                      50 W RMS / 165 W Max.

                                                        Freq. Response:

                                                        30 – 30.000 Hz

                                                          Impedance:

                                                            Crossover Frequency:

                                                            4.000 Hz (6/12 dB/Okt.)

                                                              Sensitivity:

                                                              86 dB (2,83V/1m)



                                                                Installation Manual

                                                                more 6x9" models

                                                              • 2-Way-Compo./Coaxial-System

                                                                  Technical Data



                                                                  Diameter T/W:

                                                                  20 mm (0.8“) / 6 x 8"

                                                                  Principle:

                                                                  2-Way-Compo./Coaxial-System

                                                                    Power Handling:

                                                                    40 W RMS / 130 W Max.

                                                                      Freq. Response:

                                                                      38 – 30.000 Hz

                                                                        Impedance:

                                                                          Crossover Frequency:

                                                                          3.500 Hz (6/12 dB/Okt.)

                                                                            Sensitivity:

                                                                            88 dB (2,83V/1m)



                                                                              Installation Manual

                                                                              more 6x8" models

                                                                            Ultra Flat - Systems

                                                                            • 2-Way-Component-System

                                                                                Technical Data



                                                                                Diameter T/W:

                                                                                25 mm (1“) / 16 cm (6.5“)

                                                                                Principle:

                                                                                2-Way-Component-System

                                                                                  Power Handling:

                                                                                  50 W RMS / 165 W Max.

                                                                                    Freq. Response:

                                                                                    38 – 30.000 Hz

                                                                                      Impedance:

                                                                                        Crossover Frequency:

                                                                                        5.200 Hz (12 dB/Okt.)

                                                                                          Sensitivity:

                                                                                          88 dB (2,83V/1m)



                                                                                            Installation Manual

                                                                                            more 6,5" models

                                                                                          • 2-Way-Component-System

                                                                                              Technical Data



                                                                                              Diameter T/W:

                                                                                              25 mm (1“) / 13 cm (5.25“)

                                                                                              Principle:

                                                                                              2-Way-Component-System

                                                                                                Power Handling:

                                                                                                35 W RMS / 115 W Max.

                                                                                                  Freq. Response:

                                                                                                  52 – 30.000 Hz

                                                                                                    Impedance:

                                                                                                      Crossover Frequency:

                                                                                                      5.200 Hz (12 dB/Okt.)

                                                                                                        Sensitivity:

                                                                                                        87 dB (2,83V/1m)



                                                                                                          Installation Manual

                                                                                                          more 5,25" models

                                                                                                        • 2-Way-Component-System

                                                                                                            Technical Data



                                                                                                            Diameter T/W:

                                                                                                            25 mm (1“) / 10 cm (4“)

                                                                                                              Principle:

                                                                                                              2-Way-Component-System

                                                                                                                Power Handling:

                                                                                                                30 W RMS / 100 W Max.

                                                                                                                  Freq. Response:

                                                                                                                  59 – 30.000 Hz

                                                                                                                    Impedance:

                                                                                                                      Crossover Frequency:

                                                                                                                      3.800 Hz (12 dB/Okt.)

                                                                                                                        Sensitivity:

                                                                                                                        84 dB (2,83V/1m)



                                                                                                                          Installaion Manual

                                                                                                                          more 4" models

                                                                                                                          20 cm / 8" - Systems

                                                                                                                          • 3-Way-Component-System

                                                                                                                              Technical Data



                                                                                                                              Diameter T/W:

                                                                                                                              20 mm (0.8“) / 10 cm (4") / 20 cm (8“)

                                                                                                                              Principle:

                                                                                                                              3-Way-Component-System

                                                                                                                                Power Handling:

                                                                                                                                75 W RMS / 245 W Max.

                                                                                                                                  Freq. Response:

                                                                                                                                  26 – 30.000 Hz

                                                                                                                                    Impedance:

                                                                                                                                      Crossover Frequency:

                                                                                                                                      147 / 3.400 Hz (12 dB/Okt.)

                                                                                                                                        Sensitivity:

                                                                                                                                        88 dB (2,83V/1m)



                                                                                                                                          Installing Manual

                                                                                                                                          DSP-Settings

                                                                                                                                          more 8" models

                                                                                                                                        • 2-Way-Component-System

                                                                                                                                            Technical Data



                                                                                                                                            Diameter T/W:

                                                                                                                                            20 mm (0.8“) / 20 cm (8“)

                                                                                                                                            Principle:

                                                                                                                                            2-Way-Component-System

                                                                                                                                              Power Handling:

                                                                                                                                              75 W RMS / 240 W Max.

                                                                                                                                                Freq. Response:

                                                                                                                                                28 – 30.000 Hz

                                                                                                                                                  Impedance:

                                                                                                                                                    Crossover Frequency:

                                                                                                                                                    4.000 Hz (6/12 dB/Okt.)

                                                                                                                                                      Sensitivity:

                                                                                                                                                      88 dB (2,83V/1m)



                                                                                                                                                        Installation Manual

                                                                                                                                                        more 8" models

                                                                                                                                                      Tweeter-Kit

                                                                                                                                                        Technical Data



                                                                                                                                                        Diameter T:

                                                                                                                                                        20 mm (0.8“)

                                                                                                                                                          Principle:

                                                                                                                                                          Tweeter

                                                                                                                                                            Power Handling:

                                                                                                                                                            60 W RMS / 120 W Max.

                                                                                                                                                              Freq. Response:

                                                                                                                                                              4.000 – 30.000 Hz

                                                                                                                                                                Impedance:

                                                                                                                                                                  Crossover Frequency:

                                                                                                                                                                  5.000 Hz (12 dB/Okt.)

                                                                                                                                                                    Sensitivity:

                                                                                                                                                                    91 dB (2,83V/1m)



                                                                                                                                                                      Installation Manual

                                                                                                                                                                        EPIC EV

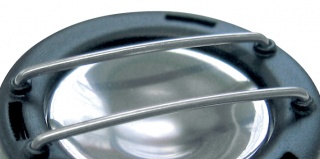

                                                                                                                                                                        Ultra-compact-sized tweeters based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system in metal housing with Concerted Thermal Compensation (CTC) for optimized heat dissipation

                                                                                                                                                                        Woofer with two-piece plastic chassis, polypropylene cone and magnet system cooled by specially designed metal cover

                                                                                                                                                                        Edge wound 1" (25mm) voice coils

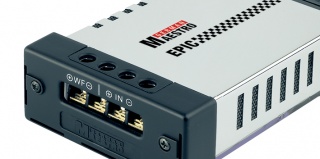

                                                                                                                                                                        EPIC crossover with unique MultiMOUNT system (MMS) for limitless mounting possibilities. Three-level tweeter output

                                                                                                                                                                        Surface mounting rings, grilles and additional mounting accessories included (EV 6808 without woofer grills)

                                                                                                                                                                        Separate or coaxial mounting with EV-Systems

                                                                                                                                                                        EPIC ES

                                                                                                                                                                        Ultra-compact-sized tweeters based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system in metal housing with Concerted Thermal Compensation (CTC) for optimized heat dissipation

                                                                                                                                                                        Woofer with two-piece plastic chassis, polypropylene cone and magnet system cooled by specially designed metal cover

                                                                                                                                                                        Edge wound 1" (25mm) voice coils

                                                                                                                                                                        EPIC crossover with unique MultiMOUNT system (MMS) for limitless mounting possibilities. Three-level tweeter output (ES 804010: Four-level tweeter attenuator with rotary switch)

                                                                                                                                                                        Surface mounting rings, grilles and additional mounting accessories included (ES 804010 / ES 8009 without 8" woofer grills)

                                                                                                                                                                        EPIC EFS - Ultra Flat System

                                                                                                                                                                        Woofer with extremely shallow plastic chassis for optimized installation in stock locations with limited mounting depths

                                                                                                                                                                        Encapsulated, front-mounted neodymium magnet system supported by Concerted Thermal Compensation (CTC)

                                                                                                                                                                        1" tweeter with titanium dome in plastic housing

                                                                                                                                                                        EPIC crossover with unique MultiMOUNT System (MMS) for limitless mounting possibilities. Three-level tweeter output

                                                                                                                                                                        Additional option for coaxial mounting



                                                                                                                                                                        All component systems of STATUS and EPIC line can be easily converted to coaxial-systems and therefore be adjusted for changing installation scenarios. Just remove the phase-plug and exchange it with the tweeter mounted on the port attached in the accessory – done.
