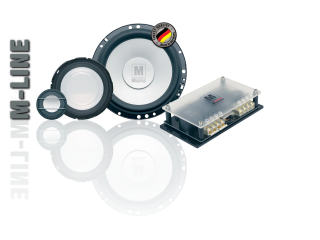

The ultimate sound

experience without compromise



With the GermanMAESTRO M-Line, you get the concert hall, the festival stage, the unplugged-gig and all your other favorite songs directly into your car – in a breathtaking quality.



  • 3-Way-Component-System

      Technical Data



      Diameter T/W:

      40 mm (1.6“) / 10 cm (4“) / 16 cm (6.5“)

      Principle:

      3-Way-Component-System

      Power Handling:

      90 W RMS / 295 W Max.

        Freq. Response:

        28 – 32.000 Hz

          Impedance:

            Crossover Frequency:

            209 / 2.350 Hz 12dB / 12dB / 12dB / 12dB

              Sensitivity:

              86 dB (2,83V/1m)



                Installation Manuel

                DSP-Settings

                more 6,5" models

              • 2-Way-Component-System

                  Technical Data



                  Diameter T/W

                  40 mm (1.6“) / 16 cm (6.5“)

                  Principle:

                  3-Way-Component-System

                    Power Handling:

                    90 W RMS / 290 W Max.

                      Freq. Response:

                      30 – 32.000 Hz

                        Impedance:

                          Crossover Frequency:

                          2.000 Hz

                            Sensitivity:

                            84 dB (2,83V/1m)



                              Installation Manuel

                              DSP-Settings

                              more 6,5" models

                            • 2-Way-Component-System

                                Technical Data



                                Diameter T/W

                                40 mm (1.6“) / 13 cm (5.25“)

                                  Principle:

                                  2-Way-Component-System

                                    Power Handling:

                                    70 W RMS / 230 W Max.

                                      Freq. Response:

                                      50 – 32.000 Hz

                                        Impedance:

                                          Crossover Frequency:

                                          2.000 Hz

                                            Sensitivity:

                                            84 dB (2,83V/1m)



                                              Installation Manual

                                              more 5,25" models

                                              • 3-Way-Component-System

                                                  Technical Data



                                                  Diameter T/W

                                                  40 mm (1.6“) / 10 cm (4“) / 16 cm (6.5“)

                                                    Principle:

                                                    3-Way-Component-System

                                                      Power Handling:

                                                      90 W RMS / 295 W Max.

                                                        Freq. Response:

                                                        28 – 32.000 Hz

                                                          Impedance:

                                                            Crossover Frequency:

                                                            Crossover not included

                                                              Sensitivity:

                                                              86 dB (2,83V/1m)



                                                                Installation Manuel

                                                                more 6,5" models

                                                                • 2-Way-Component-System

                                                                    Technical Data



                                                                    Diameter T/W

                                                                    40 mm (1.6“) / 16 cm (6.5“)

                                                                      Principle:

                                                                      3-Way-Component-System

                                                                        Power Handling:

                                                                        90 W RMS / 290 W Max.

                                                                          Freq. Response:

                                                                          30 – 32.000 Hz

                                                                            Impedance:

                                                                              Crossover Frequency:

                                                                              Crossover not included

                                                                                Sensitivity:

                                                                                84 dB (2,83V/1m)



                                                                                  Installation Manuel

                                                                                  more 6,5" models

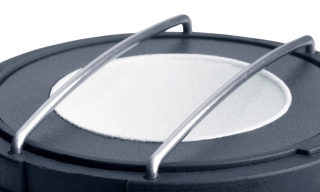

                                                                                  Tweeter

                                                                                  UltraSphere™ technology for extraordinary wide sound irradiation

                                                                                  Nano-ceramic coating on the tweeter dome for minimizing reflections at high frequencies

                                                                                  FEM calculated tweeter dome geometry for best possible force transmission from the voice coil to the tweeter dome

                                                                                  High power neodymium magnet system for best efficiency

                                                                                  0,75mm² connection cable for a lossless connection

                                                                                  The MT 40 WS with UltraSphere™ technology is a very high-resolution tweeter and one important component of the M-Line.

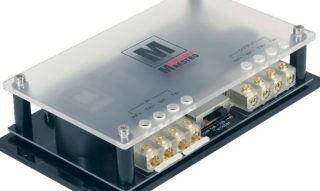

                                                                                  Crossover

                                                                                  Optimized circuit layout for minimizing interferences between the used build parts

                                                                                  Open enclosure design for perfect heat allocation during the use of the system

                                                                                  High-end film capacitors,electrolytic capacitors and coils to keep the crossover acoustical completely neutral

                                                                                  Adjustable tweeter and midrange volume level
                                                                                  for keeping a perfect tonal balance in different installation scenarios

                                                                                  The M-line crossovers have been engineered for fitting together all components of the M-line 2-way or 3-way systems in the best possible way.

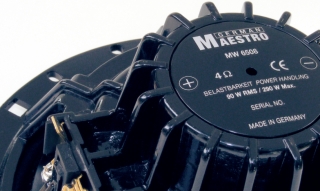

                                                                                  Midrange & Woofer Drivers

                                                                                  Nano-ceramic coating to minimize distortions and support the membranes

                                                                                  FEM calculated membranes for a high-end linear frequency response

                                                                                  25mm / 38mm edge wound voice coils for a high power handling

                                                                                  Gold coated connection terminals for an optimum connection to the speaker cable

                                                                                  Compact, high efficiency neodymium magnet system with FEM calculated t-yoke geometry to increase efficiency and linear travel of the voice coil

                                                                                  Aluminum basket with CTC technology for optimum heat removal and best performance

                                                                                  The MM 4008 midrange driver and the MW 6508 woofer driver are using nano-ceramic coated polypropylene membranes with an optimized geometry.
