Ability

Enclosure

Recommendation

Cutoff Frequency

very good

vented

tube

25 liters

8/25 cm (Ø/L)

37 Hz (-10dB)
good

sealed

10 liters

53 Hz (-10dB)
BMW

under the seat

-

30 Hz (-10dB)

    SWF 8012 HE

    Subwoofer (shallow mount)

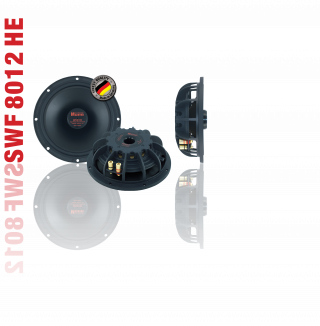

    GermanMAESTRO proudly released its shallow mount subwoofer.



    Technical Data



    Principle:

    Subwoofer (shallow mount)

    Diameter:

    20 cm / 8"

    Power Handling:

    150 W RMS / 290 W Max.

    Freq. Response:

    28 Hz - 4.500 Hz

    Impedance:

    4 Ohm

    Sensitivity:

    93 dB (2,83V/1m)



    Installation Manual

    more Subwoofer

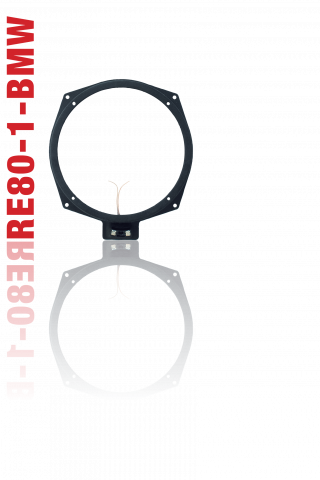

    The RE80-1-BMW adapter ring is the optimal solution to install the SWF8012HE subwoofer under the seat.

    Slim shallow mount design with front motor applicable especially for underseat- and doorboard installations e.g. in many BMW or Volkswagen cars

    High efficiency due to maximized cone surface

    Very high SPL max. due to extremely powerful neodymium magnet system

    Exceptional low range performance, due to very low resonance frequency

    Renders every detail of the music, due to minimization of mechanical losses

    Very high long-term power handling due to optimum voice coil ventilation and heat dissipation

    • Subwoofer

        Technical Data



        Principle:

        Subwoofer

        Diameter:

        20 cm / 8"

        Power Handling:

        120 W RMS / 260 W Max.

        Freq. Response:

        24 Hz

        Impedance:

        Sensitivity:

        93 dB (2,83V/1m)



          Installation dimensions

          more Subwoofer

          Enclosure Redommendations:

          sealed

          10,5 liters

          50 Hz (-10dB)
          87 Hz (-3dB)
          vented

          24 liters

          24 Hz (-10dB)
          34 Hz (-3dB)

          bandpass

          20 liters

          26 Hz (-10dB)
          33 Hz (-3dB)
            TSP ⇑
            TSP ⇓



            • Fs: 38 Hz
            • Re: 3,4 Ω
            • Qts: 0,31
            • Vas: 44 Liter
          • WideBand-Woofer

              Technical Data



              Principle:

              WideBand-Woofer

              Diameter:

              20 cm / 8"

              Power Handling:

              100W RMS / 240 W Max.

              Freq. Response:

              28 Hz

              Impedance:

              4 Ω

              Sensitivity:

              91 dB (2,83V/1m)



                Installing dimensions

                more Subwoofer

                TSP ⇑
                TSP ⇓



                • Fs: 70 Hz
                • Re: 3,2 Ω
                • Qts: 0,68
                • Vas: 14,8 Liter
                • A: 229,65 cm²
              • WideBand-Woofer

                  Technical Data



                  Principle:

                  WideBand-Woofer

                  Diameter:

                  25 cm / 10"

                  Power Handling:

                  150 W / 300 W Max.

                  Freq. Response:

                  26 Hz

                  Impedance:

                  4 Ω

                  Sensitivity:

                  91 dB (2,83V/1m)



                    Installation dimensions

                    more Subwoofer

                      TSP ⇑
                      TSP ⇓



                      • Fs: 51 Hz
                      • Re: 3,6 Ω
                      • Qts: 0,72
                      • Vas: 30,6 Liter
                      • A: 333,29 cm²

                    3-Series - A promise

                    The GermanMAESTRO 3-SERIES has its very own product philosophy. For that reason, every product within the series - which is marked with the three claws - stands for:

                    Razor-sharp, focused engineering with clear ambition

                    Razor-sharp quality controls along the production process

                    Razor-sharp calculation for gaining a very good price / quality ratio

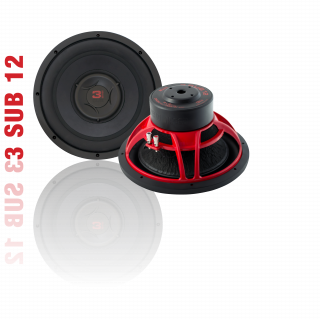

                    3 SUB 12 - Technical Data



                    • Power Handling: 350 W RMS / 700 W Musik
                    • AMP Recommendation: 150 W - 1.500 W
                    • Impedance: 2 x 2 Ω
                    • Xlin: +/- 15 mm
                    • Xmax: +/- 25 mm !
                    • Mounting depth: 152 mm / 5.98"
                    • Cut-out ∅: 283 mm / 11.14"
                    • External ∅: 315 mm / 12.4"
                    • Weight: 5,8 Kg



                    Manual

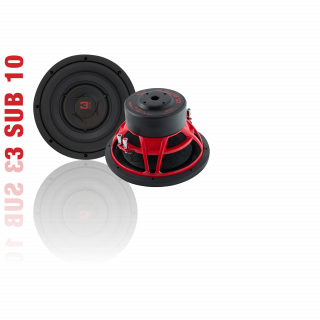

                    3 SUB 10 - Technical Data



                    • Power Handling: 350 W RMS / 700 W Musik
                    • AMP Recommendation: 150 W - 1.500 W
                    • Impedance: 2 x 2 Ω
                    • Xlin: +/- 15 mm
                    • Xmax: +/- 25 mm !
                    • Mounting depth: 141 mm / 5.55"
                    • Cut-out ∅: 235 mm / 9.25"
                    • External ∅: 263 mm / 10.35"
                    • Weight: 5,3 Kg



                    Manual

                    Enclosure Recommendations

                    (Data valid for an activated low-pass filter at 80Hz, 24dB/oct)

                    The choice of enclosure has a significant influence on the tonal behavior and maximum SPL of the subwoofer.

                    In general, we recommend two different types of enclosure:



                    Option 1 - Closed box (precise, crisp bass for sound quality installations)

                    3SUB10

                    22 Liter: Qtc = 0,5 ;

                    10 Liter: Qtc = 0,7 ;

                    fu (-10 dB) = 21 Hz (recommendation for a maximum depth)

                    fu (-10 dB) = 27 Hz (recommendation for a small enclosure size)

                    3SUB12

                    50 Liter: Qtc = 0,55 ;

                    24 Liter: Qtc = 0,7 ;

                    15 Liter: Qtc = 0,85 ;

                    fu (-10 dB) = 20 Hz (recommendation for a maximum depth)

                    fu (-10 dB) = 24 Hz (best compromise of enclosure size and depth)

                    fu (-10 dB) = 28 Hz (recommendation for small enclosure)



                    Option 2 - Vented Box (up to 8dB more maximum SPL than comparable closed boxes, but less precise)

                    3SUB10

                    40 Liter: fb = 30 Hz (1x BR-Kit-1) ;

                    25 Liter: fb = 37 Hz (1x BR-Kit-1) ;

                    fu (-10 dB) = 22 Hz (recommendation for maximum SPL all the way down)

                    fu (-10 dB) = 28 Hz (recommendation for smaller enclosures)

                    3SUB12

                    50 Liter: fb = 26 Hz (1x BR-Kit-1) ;

                    30 Liter: fb = 34 Hz (1x BR-Kit-1) ;

                    fu (-10 dB) = 20 Hz (recommendation for maximum SPL all the way down)

                    fu (-10 dB) = 26 Hz (recommendation for smaller enclosures)

                    Engineered in Germany

                    At the very first beginning of a product, there is always engineering. In case of the 3-SERIES subwoofers, we took an extra amount of time for creating a product which is combining very good tonal attributes with high power handling capability and absolute performance. We take this extra effort in order to be able to provide a product that puts smile on your face.

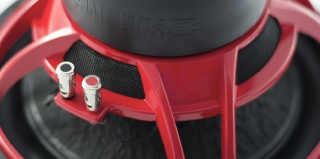

                    Performance machines don't need any make-up

                    If you're searching for nice decorating parts, you're on the wrong track. The plain, straight forward design shows what is inside those subwoofers - true performance machines. Spacious ventilations within the basket and the pole plate guarantee an optimum cooling of the voice coil for maximum power load stability even for hours.

                    The advantage is in the details

                    The extra strengthened paper membrane ensures an optimum weight/stability ratio. A valuable rubber surrounding ensures long-term durability over years.

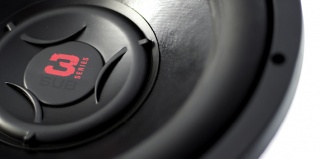

                    Special dust cap design:

                    The special geometry improves its stiffness while keeping the weight low and supports the membrane significantly at the point of force transmission from the voice coil

                    Extra large gluing surface for maximum stability

                    No Coincidence.

                    Improving, strengthening, selecting

                    All gluing of surrounding, membrane, spider and voice coil are well over engineered, compared to the standards. The elastic glue around the edges of the tinsel leads is added with great attention and care. There are only special T-yokes used, which have very low tolerances and a high surface quality. This is how a maximum of safety and durability can be granted, even if the subwoofer is pumping at its awesome Xmax of + / - 25 mm!

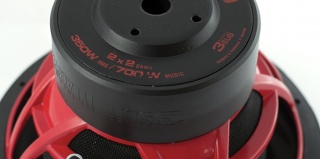

                    We keep our efforts high

                    for lowering your limitations

                    Due to the black nomex-spider and a wide, flexible rubber surrounding, this woofer is capable of very high linear excursions without much mechanical loss. In addition, it has a 2 x 2 Ohms dual voice coil, which is offering a variation of connection possibilities to you, for best fit to almost every amplifier. Moreover, due to the extraordinary high coil winding, harmonic distorions are kept to a minimum even at high cone travel. Power handling of 350W RMS / 700W Music is a serious measurement without any marketing tricks. The 700W Music is the more relevant date, because this value reflects much more the load of a common music signal, whereas the sine- or noise signal used for rms-measuring is posing a strain which won´t ever occur during normal use. We recommend to use amplifiers starting from 150W (budget) up to 1.500W (fun!).
