Maybe the most honest car-hifi

line in the world



CONCEPT stands for our ambitious aim to provide a product line which is completely focused on sound performance, with the highest possible amount of German handcraft and an outstanding price / quality ratio.

Component - Systems

  • 3-Way-Component-System

      Technical Data



      Diameter T/W:

      30 mm (1.2“) / 10 cm (4") / 16 cm (6.5“)

      Principle:

      3-Way-Component-System

        Power Handling:

        60 W RMS / 170 W Max.

          Freq. Response:

          31 – 28.000 Hz

            Impedance:

              Crossover Frequency:

              276 / 3.500 Hz (6/12 dB/Okt.)

                Sensitivity:

                89 dB (2,83V/1m)



                  Installation Manual

                  Installation Manuel with the new cable Crossover

                  DSP-Settings

                  more 6,5" models

                • 2-Way-Component-System

                    Technical Data



                    Diameter T/W:

                    30 mm (1.2“) / 16 cm (6.5“)

                    Principle:

                    2-Way-Component-System

                      Power Handling:

                      50 W RMS / 165 W Max.

                        Freq. Response:

                        35 – 28.000 Hz

                          Impedance:

                            Crossover Frequency:

                            5.500 Hz (12 dB/Okt.)

                              Sensitivity:

                              89 dB (2,83V/1m)



                                Installation Manual

                                DSP-Settings

                                more 6,5" models

                              • 2-Way-Component-System

                                  Technical Data



                                  Diameter T/W:

                                  30 mm (1.2“) / 13 cm (5,25“)

                                    Principle:

                                    2-Way-Component-System

                                      Power Handling:

                                      35 W RMS / 100 W Max.

                                        Freq. Response:

                                        55 – 28.000 Hz

                                          Impedance:

                                            Crossover Frequency:

                                            5.500 Hz (-/12 dB/Okt.)

                                              Sensitivity:

                                              88 dB (2,83V/1m)



                                                Installation Manual

                                                more 5,25" models

                                                • 2-Way-Component-System

                                                    Technical Data



                                                    Diameter T/W:

                                                    30 mm (1.2“) / 10 cm (4“)

                                                    Principle:

                                                    2-Way-Component-System

                                                      Power Handling:

                                                      30 W RMS / 100 W Max.

                                                        Freq. Response:

                                                        53 – 28.000 Hz

                                                          Impedance:

                                                            Crossover Frequency:

                                                            4.500 Hz (-/12 dB/Okt.)

                                                              Sensitivity:

                                                              87 dB (2,83V/1m)



                                                                Installation Manual

                                                                more 4" models

                                                              • 2-Way-Component-System

                                                                  Technical Data



                                                                  Diameter T/W:

                                                                  30 mm (1.2“) / 16 cm (6.5“)

                                                                  Principle:

                                                                  2-Way-Component-System

                                                                    Power Handling:

                                                                    50 W RMS / 150 W Max.

                                                                      Freq. Response:

                                                                      38 – 28.000 Hz

                                                                        Impedance:

                                                                          Crossover Frequency

                                                                          4.400 Hz (-/12 dB/Okt.)

                                                                            Sensitivity:

                                                                            89 dB (2,83V/1m)



                                                                              Installation Manual

                                                                              DSP-Settings

                                                                              more 6,5" models

                                                                            Coaxial - Systems

                                                                            • 2-Way-Coaxial-System

                                                                                Technical Data



                                                                                Diameter T/W:

                                                                                30 mm (1.2“) / 16 cm (6.5“)

                                                                                Principle:

                                                                                2-Way-Coaxial-System

                                                                                  Power Handling:

                                                                                  50 W RMS / 165 W Max.

                                                                                    Freq. Response:

                                                                                    38 – 28.000 Hz

                                                                                      Impedance:

                                                                                        Crossover Frequency:

                                                                                        5.100 Hz (-/12 dB/Okt.)

                                                                                          Sensitivity:

                                                                                          89 dB (2,83V/1m)



                                                                                            Installation Manual

                                                                                            more 6,5" models

                                                                                          • 2-Way-Coaxial-System

                                                                                              Technical Data



                                                                                              Diameter T/W:

                                                                                              30 mm (1.2“) / 13 cm (5.25“)

                                                                                              Principle:

                                                                                              2-Way-Coaxial-System

                                                                                                Power Handling:

                                                                                                50 W RMS / 165 W Max.

                                                                                                  Freq. Response:

                                                                                                  55 – 28.000 Hz

                                                                                                    Impedance:

                                                                                                      Crossover Frequency:

                                                                                                      5.500 Hz (-/12 dB/Okt.)

                                                                                                        Sensitivity:

                                                                                                        88 dB (2,83V/1m)



                                                                                                          Installation Manual

                                                                                                          more 5,25" models

                                                                                                        • 2-Way-Coaxial-System

                                                                                                            Technical Data



                                                                                                            Diameter T/W:

                                                                                                            30 mm (1.6“) / 10 cm (4“)

                                                                                                              Principle:

                                                                                                              2-Way-Coaxial-System

                                                                                                                Power Handling:

                                                                                                                30 W RMS / 100 W Max.

                                                                                                                  Freq. Response:

                                                                                                                  60 – 28.000 Hz

                                                                                                                    Impedance:

                                                                                                                      Crossover Frequency:

                                                                                                                      4.500 Hz (-/12 dB/Okt.)

                                                                                                                        Sensitivity:

                                                                                                                        87 dB (2,83V/1m)



                                                                                                                          Installation Manual

                                                                                                                          more 4" models

                                                                                                                          • 2-Way-Coaxial-System

                                                                                                                              Technical Data



                                                                                                                              Diameter T/W:

                                                                                                                              30 mm (1.2“) / 6 x 9"

                                                                                                                              Principle:

                                                                                                                              2-Way-Coaxial-System

                                                                                                                                Power Handling:

                                                                                                                                60 W RMS / 195 W Max.

                                                                                                                                  Freq. Response:

                                                                                                                                  35 – 28.000 Hz

                                                                                                                                    Impedance:

                                                                                                                                      Crossover Frequency:

                                                                                                                                      4.700 Hz (-/12 dB/Okt.)

                                                                                                                                        Sensitivity:

                                                                                                                                        90 dB (2,83V/1m)



                                                                                                                                          Installation Manual

                                                                                                                                          more 6x9" models

                                                                                                                                        • 2-Way-Coaxial-System

                                                                                                                                            Technical Data



                                                                                                                                            Diameter T/W:

                                                                                                                                            30 mm (1.2“) / 6 x 8“

                                                                                                                                            Principle:

                                                                                                                                            2-Way-Coaxial-System

                                                                                                                                              Power Handling:

                                                                                                                                              50 W RMS / 165 W Max.

                                                                                                                                                Freqg. Responsive:

                                                                                                                                                40 – 28.000 Hz

                                                                                                                                                  Impedance:

                                                                                                                                                    Crossover Frequency:

                                                                                                                                                    4.700 Hz (-/12 dB/Okt.)

                                                                                                                                                      Sensitivity:

                                                                                                                                                      89 dB (2,83V/1m)



                                                                                                                                                        Installation Manual

                                                                                                                                                        more 6x8" models

                                                                                                                                                      2Ω - Systems

                                                                                                                                                      • 2-Way-Component-System

                                                                                                                                                          Technical Data



                                                                                                                                                          Diameter T/W:

                                                                                                                                                          30 mm (1.2“) / 16 cm (6.5“)

                                                                                                                                                          Principle:

                                                                                                                                                          2-Way-Component-System

                                                                                                                                                            Power Handling:

                                                                                                                                                            60 W RMS / 150 W Max.

                                                                                                                                                              Freq. Response:

                                                                                                                                                              33 – 28.000 Hz

                                                                                                                                                                Impedance:

                                                                                                                                                                  Crossover Frequency:

                                                                                                                                                                  5.500 Hz (-/12 dB/Okt.)

                                                                                                                                                                    Sensitivity:

                                                                                                                                                                    92 dB (2,83V/1m)



                                                                                                                                                                      Installation Manual

                                                                                                                                                                      more 6,5" models

                                                                                                                                                                    • 2-Way-Component-System

                                                                                                                                                                        Technical Data



                                                                                                                                                                        Diameter T/W:

                                                                                                                                                                        30 mm (1.2“) / 13 cm (5.25“)

                                                                                                                                                                        Principle:

                                                                                                                                                                        2-Way-Component-System

                                                                                                                                                                          Power Handling:

                                                                                                                                                                          60 W RMS / 120 W Max.

                                                                                                                                                                            Freq. Response:

                                                                                                                                                                            50 – 28.000 Hz

                                                                                                                                                                              Impedance:

                                                                                                                                                                                Crossover Frequency:

                                                                                                                                                                                5.700 Hz (-/12 dB/Okt.)

                                                                                                                                                                                  Sensitivity:

                                                                                                                                                                                  91 dB (2,83V/1m)



                                                                                                                                                                                    Installation Manual

                                                                                                                                                                                    more 5,25" models

                                                                                                                                                                                  • 2-Way-Coaxial-System

                                                                                                                                                                                      Technical Data



                                                                                                                                                                                      Diameter T/W:

                                                                                                                                                                                      30 mm (1.2“) / 16 cm (6.5“)

                                                                                                                                                                                      Principle:

                                                                                                                                                                                      2-Way-Coaxial-System

                                                                                                                                                                                        Power Handling:

                                                                                                                                                                                        60 W RMS / 150 W Max.

                                                                                                                                                                                          Freq. Response:

                                                                                                                                                                                          33 – 28.000 Hz

                                                                                                                                                                                            Impedance:

                                                                                                                                                                                              Crossover Frequency:

                                                                                                                                                                                              5.200 Hz (-/12 dB/Okt.)

                                                                                                                                                                                                Sensitivity:

                                                                                                                                                                                                92 dB (2,83V/1m)



                                                                                                                                                                                                  Installation Manual

                                                                                                                                                                                                  DSP-Settings

                                                                                                                                                                                                  more 6,5" models

                                                                                                                                                                                                • 2-Way-Coaxial-System

                                                                                                                                                                                                    Technical Data



                                                                                                                                                                                                    Diameter T/W:

                                                                                                                                                                                                    30 mm (1.2“) / 13 cm (5.25“)

                                                                                                                                                                                                    Principle:

                                                                                                                                                                                                    2-Way-Coaxial-System

                                                                                                                                                                                                      Power Handling:

                                                                                                                                                                                                      60 W RMS / 120 W Max.

                                                                                                                                                                                                        Freq. Response:

                                                                                                                                                                                                        50 – 28.000 Hz

                                                                                                                                                                                                          Impedance:

                                                                                                                                                                                                            Crossover Frequency:

                                                                                                                                                                                                            5.700 Hz (-/12 dB/Okt.)

                                                                                                                                                                                                              Sensitivity:

                                                                                                                                                                                                              91 dB (2,83V/1m)



                                                                                                                                                                                                                Installation Manual

                                                                                                                                                                                                                more 5,25" models

                                                                                                                                                                                                              Concept CS

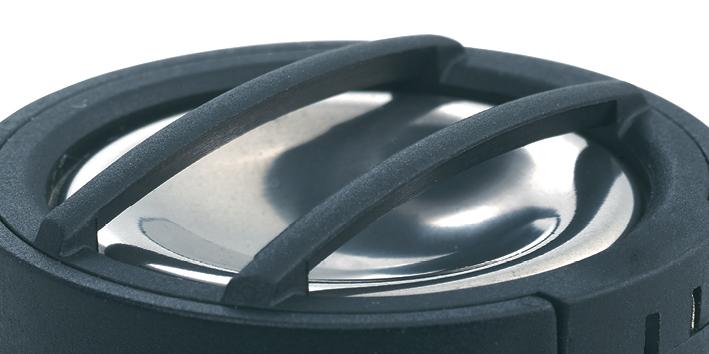

                                                                                                                                                                                                              Tweeter based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system

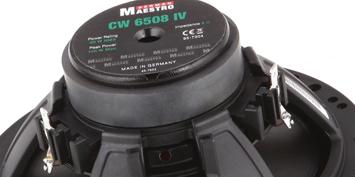

                                                                                                                                                                                                              Woofer with two-piece plastic chassis, polypropylene cone and edge wound voice coils

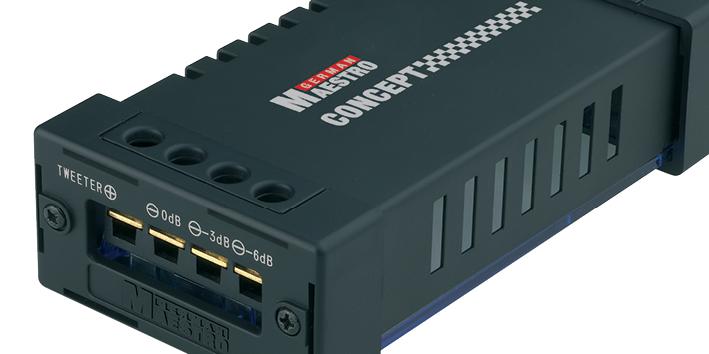

                                                                                                                                                                                                              CONCEPT crossover with new and unique MultiMOUNT system for limitless mounting possibilities. Two-level tweeter output.

                                                                                                                                                                                                              (CS 654010: Four-level tweeter attenuator with rotary switch / CS4008: separate cable crossover)

                                                                                                                                                                                                              Tweeter mounting rings, -consoles and other additional mounting accessories included

                                                                                                                                                                                                              Concept CC

                                                                                                                                                                                                              Tweeter based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system

                                                                                                                                                                                                              Woofer with two-piece plastic chassis and polypropylene cone

                                                                                                                                                                                                              Compact-sized, chassis-mounted crossovers

                                                                                                                                                                                                              Surface mounting rings, grilles and additional mounting accessories included *CC6808: without woofer grills, mounting material included

                                                                                                                                                                                                              CS 6508 IV (Installer Version)

                                                                                                                                                                                                              For an easy and quick installtion behind the original speaker covers of your car, we provide the CS6508-IV system without grills for the woofers and with an extra small crossover.

                                                                                                                                                                                                              CONCEPT CS 654010 Insanity on 3-ways

                                                                                                                                                                                                              This 3-way system is no toy at all. Every detail of this product has been optimized for a perfect sound reproduction even at high SPL. Functionality dominates the engineering and in good, old GermanMAESTRO fashion, we left out all unnecessary glitter-cosmetics. With the CS654010, we provide a 3-way sound machine to you. Not more and for sure not less.
