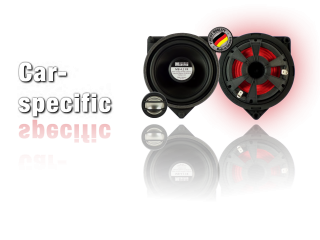

Fahrzeug-spezifische Lautsprecher Mercedes Benz

The MB4.2FR was specifically engineered to fit in various Mercedes-Benz models for achieving an easy installation at good sound-performance. Like our other speaker lines, this set is manufactured in our own factory by using many build parts which come from German vendors, too.

Mercedes Benz

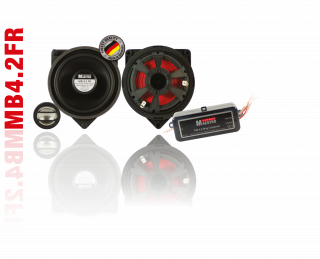

2-Way-Component + Fullrange-System

    mb42fr mercedes benz system

    Technical Data



    Diameter T/W:

    30 mm (1.2“) / 10 cm (4")

      Principle:

      2-Way-Component-System

      + Fullrange-System

        Power Handling:

        30 W RMS / 100 W Max.

          Freq. Response:

          59 – 28.000 Hz

            Impedance:

              Crossover Frequency:

              4.000 Hz

                Sensitivity:

                82 dB (2,83V/1m)

                  Mercedes Benz

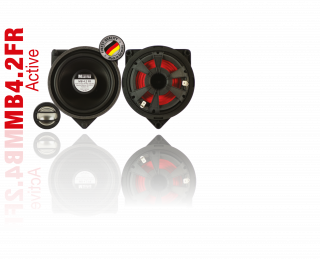

                  2-Way-Component + Fullrange-Active-System

                    mb42fr mercedes benz system

                    Technical Data



                    Diameter T/W:

                    30 mm (1.2“) / 10 cm (4")

                      Principle:

                      2-Way-Component-System

                      + Fullrange-Active-System

                        Power Handling:

                        30 W RMS / 100 W Max.

                          Freq. Response:

                          59 – 28.000 Hz

                            Impedance:

                              Crossover Frequency:

                              Crossover not included

                              Empfindlichkeit:

                              82 dB (2,83V/1m)

                                MB4.2FR

                                Tweeter based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system.

                                Midrange speaker with new engineered injection-molding basked and adapter ring, by using latest simulation software. Molded from premium fiberglass-reinforced plastic from Germany. Inlying magnet system  with strong neodymium magnet, encapsulated by a precise, CNC-machined & powder-coated pot (Made in Germany), made by strictly specified metal for an optimum magnet flux density.

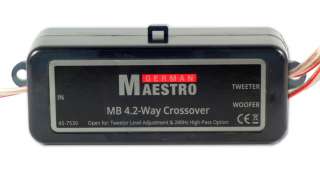

                                2-way cable crossover with 12dB high- & low-pass, optional gain reduction for the tweeter and optional high-pass filter for the midrange.

                                Sealing ring made from foam with automotive certification and flame retardancy (Made in Germany).

                                MB42FR Hochtöner
                                MB42FR Frequenzweiche
                                MB42FR Mercedes Benz Woofer

                                Fits for following models that have OEM tweeter ports:

                                W222 S-Class

                                W217 S-Class Coupé / S-Class Cabriolet

                                W253 GLC-Class

                                W213 E-Class

                                W205 C-Class
